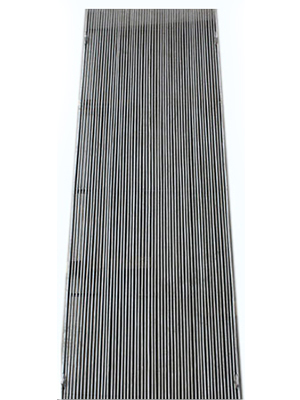

Bar screens are usually hand cleaned and sometimes provided with mechanical devices. These cleaning devices are rakes which periodically sweep the entire screen removing the solids for further processing or disposal. Hand cleaned racks are set usually at an angle of 45 degree to the horizontal to increase the effective cleaning surface and also facilitate the raking operations.
Specifications
Typical Applications :
Sewage, waste water, industrial effluent, paper and pulp mills waste. Most suitable for Nala or Flowing water bodies & Sewage pumping stations.
Type :
Bar screen
Width of Screen :
450mm to 1500mm
Length of Screen :
Up to 3000mm or as per design
Angle of Inclination :
45 degrees with horizontal
MOC :
S.S. of appropriate grade or as per design
Opening of Screen :
20mm to 60mm for Coarse Screening & 3mm to 6mm for Fine Screening or as per design.
